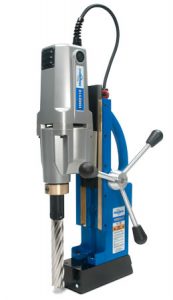

Hougen introduces the new Mag Drill HMD918. This portable magnetic drill can drill through solid or stacked plates up to 6″ in a single pass, or extend your hole reach capability. Mag Drill includes pint of coolant, safety chain and hex wrenches.
- Powerful high torque Hougen motor and gears
- 1 3/16 x 6″ capacity
- Two speed gear box – 250 & 450 RPM
- Pilot light for low light or no light conditions, and greater hole accuracy
- Two stage magnet – engages full power only when motor is turned on which increases magnet life
- Pressurized coolant system
- Lift detector safety system
- Rear mounted controls
- Feed handles quickly change from side to side
- Carrying case included
- One year warranty
|
HMD918 Specifications |
|||
| Electrical System | 115V, 50/60 Hz – 13.5A, 1553W | ||
| Motor | 12.5A, 1438W (115V) – 250/450 RPM | ||
| Diameter | 13/16” – 1-3/16” | ||
| Depth (max.) | 6” | ||
| Stroke | 6.80” | ||
| Cutter/Mount |
“12,000-Series” & Copperhead™ cutters, ¾” shank |
||
| Dimensions | 26-5/16” H x 7-1/2” W x 12-13/16” L | ||
| Magnet | Base | 3-1/2” W x 7-3/4” L | |
| 1” Plate |
Dead Lift |
Drillpoint Breakaway |
|
| 3/8” Plate | 1,635 lb. | 765 lb. | |
| Weight | 44.2 lb. • Shipping 48 lb. | ||
